Narwhal piston filler in yellow tang 1


Acrylic fountain pens [1]fountain pens with bodies made from acrylic resin are still fairly new to me. The ones I used to see in the past didn’t appeal to me, but in recent months I seem to be warming up to some types of acrylic ‘looks’ or rather: there seem seem to be more and more acrylic fountain pens that appeal to my taste.

The first one I really liked was the (in my opinion ‘happy’ looking) FanMu Hawaii fountain pen. I bought this one on eBay. [2]It wasn’t expensive, but later I found out that I overpaid when I found it being offered much cheaper from another seller

The second acrylic fountain pen I really like is the Narwhal piston filler. The look of the acrylic Narwhal is rather fascinating and nice in a completely different way to the Hawaii: the acrylic resin has a beautiful colour and rather attractive swirl patterns in it.

The Narwhal box

My Narwhal adventure started with KT from Goldspot Pens contacting me and asking whether I want to try the Narwhal. I couldn’t resist (of course), but was torn between the yellow and the blue version. KT then sent me the yellow one.

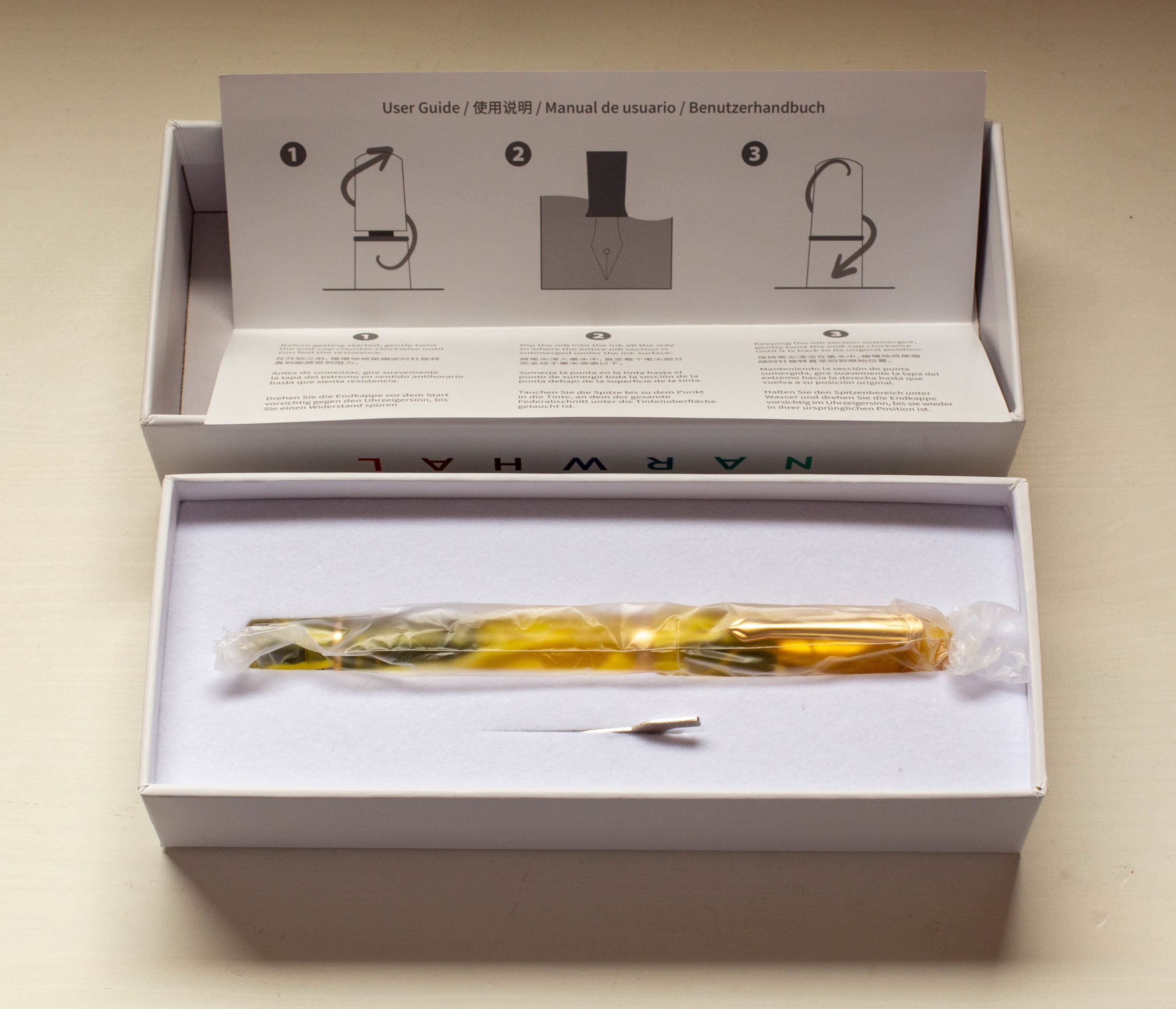

Inside the box – notice the metal tool that comes with the pen

Nib choice and line width

Goldspot’s blog provides some background information about the Narwhal and the two guys behind the brand and the pens. Times have moved on since this blog post was published: the nib is now also available in medium (the fine nib is of course still available).

Regarding the writing experience: the nib is very smooth. There isn’t much line variation unless you press very hard, i.e. it is not a flexible nib even though you can create a wider line if you want to force it.

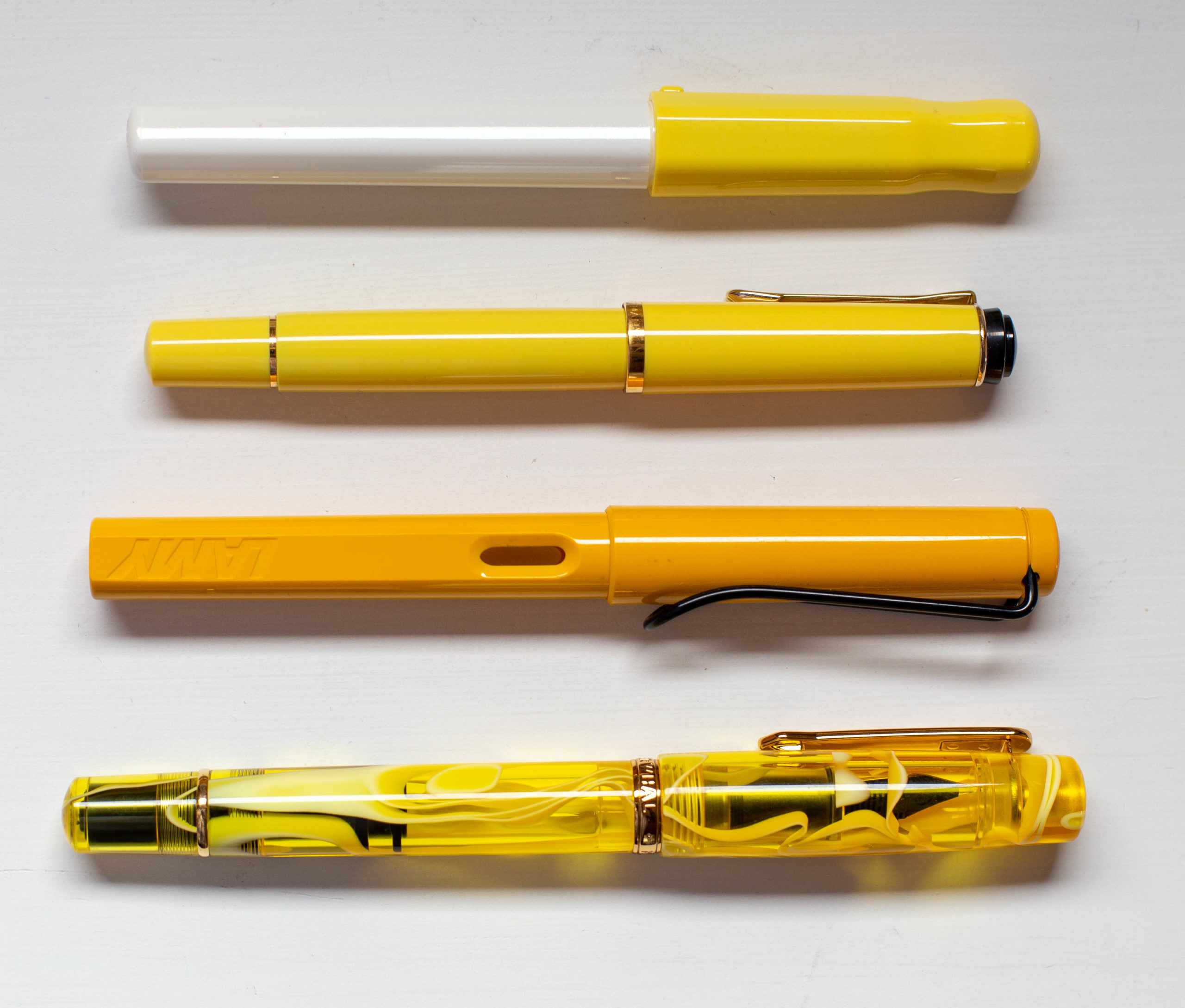

Size and colour comparison (top to bottom): Pilot Kakuno, Pelikan M200, Lamy Safari, Narwhal

I asked for the fine nib, because of my small handwriting. For my normal style of writing the nib is actually a bit too big: the nib’s line width is quite wide for a fine nib, certainly wider than lines from fine Kaweco or Lamy steel nibs. I take Pelikan out of this comparison as there is a lot of variation within the Pelikan brand and its nibs [3]in my experience much more than with Kaweco or Lamy nibs.

On Hobonichi paper – top: Narwhal, bottom: Super5 with the 0.7mm nib

My fine Narwhal nib lays down a 0.6mm wide line [4]scanned at 1200 dpi and measured in Photoshop, seen in the picture above, in blue. For comparison: the grey lines under the blue Narwhal lines are from a Super5 with the 0.7mm nib, which produces a (surprise, surprise) 0.7mm line. Please note that these are not standard 5mm squares but smaller Hobonichi squares (English version).

Looks, price and functionality

The pen itself looks great and certainly like a pen from a higher price band than the Narwhal’s $45 (~€38; ~£33). You even get a tool with your pen to help with disassembly, similar to what you get with a TWSBI.

The Narwhal nib

The gold band after the grip section looks very nice, especially without the cap. When the cap is on the pen the transition between the cap and the gold band looks a bit abrupt (check the photos earlier in this blog post) – most pen with bands seem to have the bands at the end of the caps rather than having none at the end of the cap but one ‘in the middle of the pen body’, i.e. after the grip section.

The modern looking cap with I call a ‘goldspot finial’.

The main attractions for me are, other than the smooth piston filling mechanism, the beautiful three-dimensional swirls that seem to defy the laws of physics because the seem to be much deeper and more three-dimensional than the narrow space between the outside of the pen and the ink reservoir should allow. Have look at them in the video below.

You can’t post the cap, at least not in a way that is comfortable and works well, but as I don’t post pens unless they have to be posted (OHTO Tasche, Cult Pens by Kaweco, …) I don’t mind at all.

Ink capacity

I had a look at the ink capacity of the Narwhal and I could fit in a bit more than 1 ml of ink. For comparison: a standard international ink cartridge can hold about 0.8 ml. There is actually more space in the Narwhal than 1 ml, but when you move the piston to the feed there is quite a gap, i.e. there is unexpelled air which is using space that consequently cannot be filled. When filling your fountain pen the traditional way, nib down, the air travels to the top and you still cannot expel the air to fill the ink chamber to capacity. You should be able to get more than 1.5 ml of ink into the pen, if you fill it with the nib pointing upwards, but you’d need some sort of travel inkwell that fits well.

The knob and piston filling mechanism

Conclusion

Overall this pen provides excellent value for money. There are not that many piston fillers in the same price range. The Narwhal is very well made and is also available in a choice of colours. I just wish the nib was also available in EF.


Goldspot provided the pen free of charge and KT patiently answered all questions I could think of. I did no receive any money for this review.

Price and exchange rates: March 2021.

References

References
1fountain pens with bodies made from acrylic resin
2It wasn’t expensive, but later I found out that I overpaid when I found it being offered much cheaper from another seller
3in my experience much more than with Kaweco or Lamy nibs
4scanned at 1200 dpi and measured in Photoshop
